Sunday, February 19, 2012

Shortcut protection for power supply

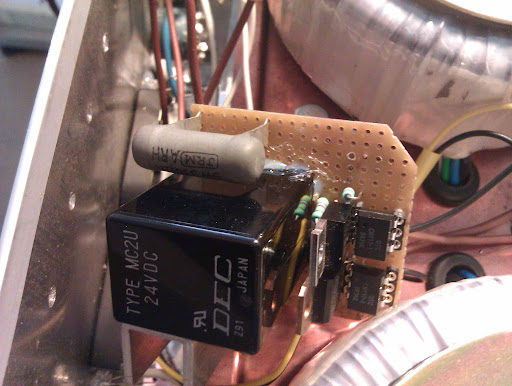

This i the automatic shortcut protection circuit in my dual  rail power supply with 2 x lm338

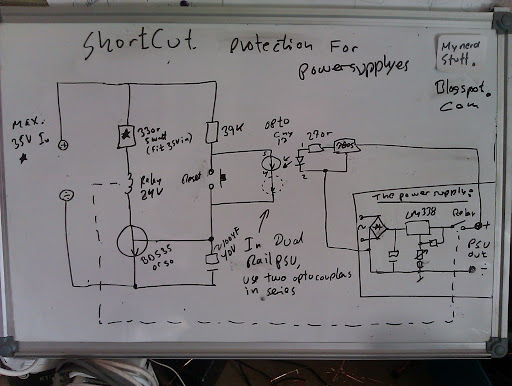

Schemtaic for the shortcut protection circuit,. This is scheematic for the single rail powersupply, you can just add more  optocouplers in series for dual rail, or even more rails.
